Electric Underfloor Heating Mats for Tiles

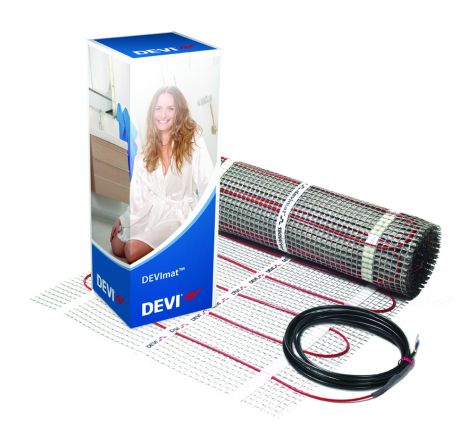

Devi underfloor heating mats

Date: Nov 20 2018 8:56AM

Devi underfloor heating mats

With 65 years in the industry Devi are the market leaders in underfloor heating and with low energy consumption Devimat underfloor electrical wired systems are the most popular and cost effective choice . Two types are available with Devimat DTIR100W/m²for timber substrates and Devimat DTIR 150W/m² for concrete substrates. Sizes start from sizes 0.5m² going up in increments of 0.5m² to 4m² then in increments of 1m² up to 10m² then finally a 12m² matt is also available. Combinations of these sizes can be used together to fit your desired floor area, but take care not to exceed the maximum load for your thermostat and for larger areas more than 1 thermostat may be required.

Before laying the mat a groove should be cut into the floor and wall of about 10mm in depth and width, to accommodate the floor sensor and tube. The floor surface should be dry, clean and level with no undulations or loose areas and the element should be at least 30mm away from anything conductive such as water pipes. Ready to roll the mat can be cut so that any turns can be made to lay the next piece at the side of the first. Ensure that only the mesh and not the heating cable are cut at this stage. Once the mat is laid, it is a good idea to make a plan of all important parts and connections for future reference.

It is important that a qualified electrician connects your installation to the mains.

Some key features of Devi under floor heating mats are as


  • Easy to install
  • Pre spaced cable
  • Self adhesive matt
  • Twin conductor
  • Manufactures 20 year warranty
  • Depth under 4mm

Devireg Touch Thermostat

The latest technology has been utilised to develop this brand new touch screen intelligent Devireg thermostat. Programming and heat settings are at the touch of your finger tips with the reliable and efficient timer that is simple and easy to use. Flexible programming allows settings to be copied to other days or to vary according to your comfort. Featuring a stylish elegant design and a built in set up wizard, this thermostat takes the hassle out of heating your floors.

All floor heating systems must be fitted with a floor sensor when the heating element is fitted on or beneath wooden or heat sensitive surfaces!

Some key features of Devireg Touch Thermostats are as


  • Intelligent touch screen control
  • Built in set up wizard
  • Energy consumption readouts
  • Flexible time settings
  • 5 year warranty
  • Easy to use code for multiple set ups and re-sets
  • Quick access button for frost protection and power off.
